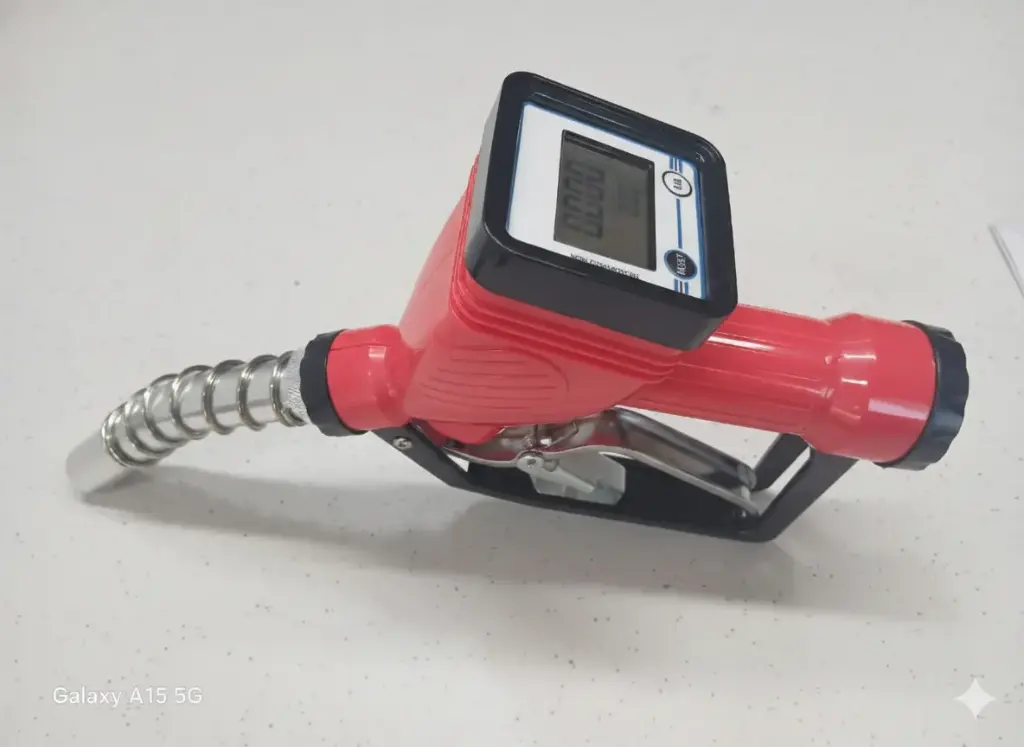

Digital Fuel Nozzle with Meter


Specifications:

Product Type: Digital flow meter fuel nozzle/ dispensing gun

Compatible Fluids: Diesel, kerosene, light Oils

Flow Rate: 10 to 120 Liter per minute (LPM)

Accuracy: ±0.5% to ±1.0%

Inlet Size: 1" or 3/4" BSP

Display Type: Digital LCD (with backlight)

Measurement Units: Liters (L), Gallons (GAL), Pints (PT), Quarts (QT)

Max. Working Pressure: 0.2 to 0.5 MPa (Approx. 2 to 5 Bar / 30 to 70 PSI)

Totalizer (Cumulative): 6 Digits (Non-resettable)

Batch Total (Resettable): 4 to 5 Digits (e.g., 0.00 to 999.9 or 9999.9)

Power Supply: 2 x 1.5V Batteries (AAA or AA Alkaline)

Body Material: Aluminum alloy

Shut-Off Mechanism: Manual control (a trigger lock/latch)

Operating Temperature: −10 degree C to +60 degree C
