Specification:

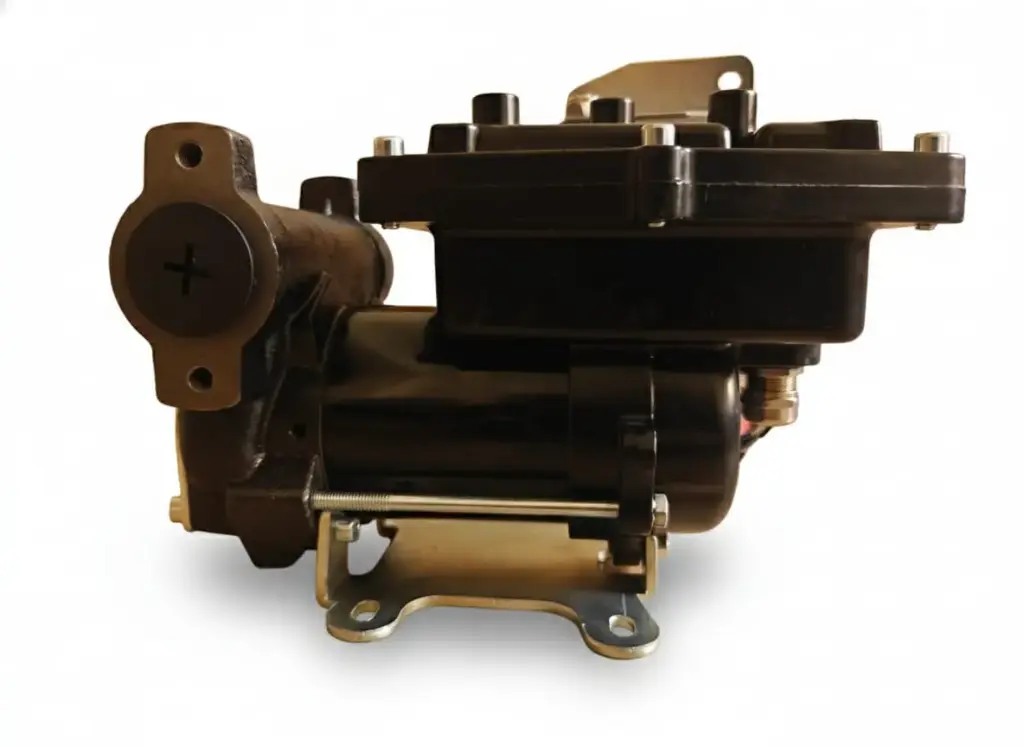

Pump Type Self-Priming Rotary Vane Pump with Inbuilt Bypass Valve
Material of Construction Heavy-duty Cast Iron (Body), Sintered Powder Metal (Gears/Vanes)
Flow Rate 50 LPM to 75 LPM (depending on the specific voltage model)
Input Voltage: 220V AC (Single Phase)
Power Rating: 375W (approx. 1/3 HP)
Duty Cycle: 30 Minutes ON / 30 Minutes OFF (Not for continuous use)
Inlet / Outlet Size: 1" (25mm) BSP
Max Suction Lift: 3 to 5 meters (Self-priming)
Max Head / Lift: 10 meters
Explosion-Proof Rating: Ex d IIA/IIB T4 Certified (Flameproof)
Protection Class: IP55 (Weatherproof/Dustproof)
